Description

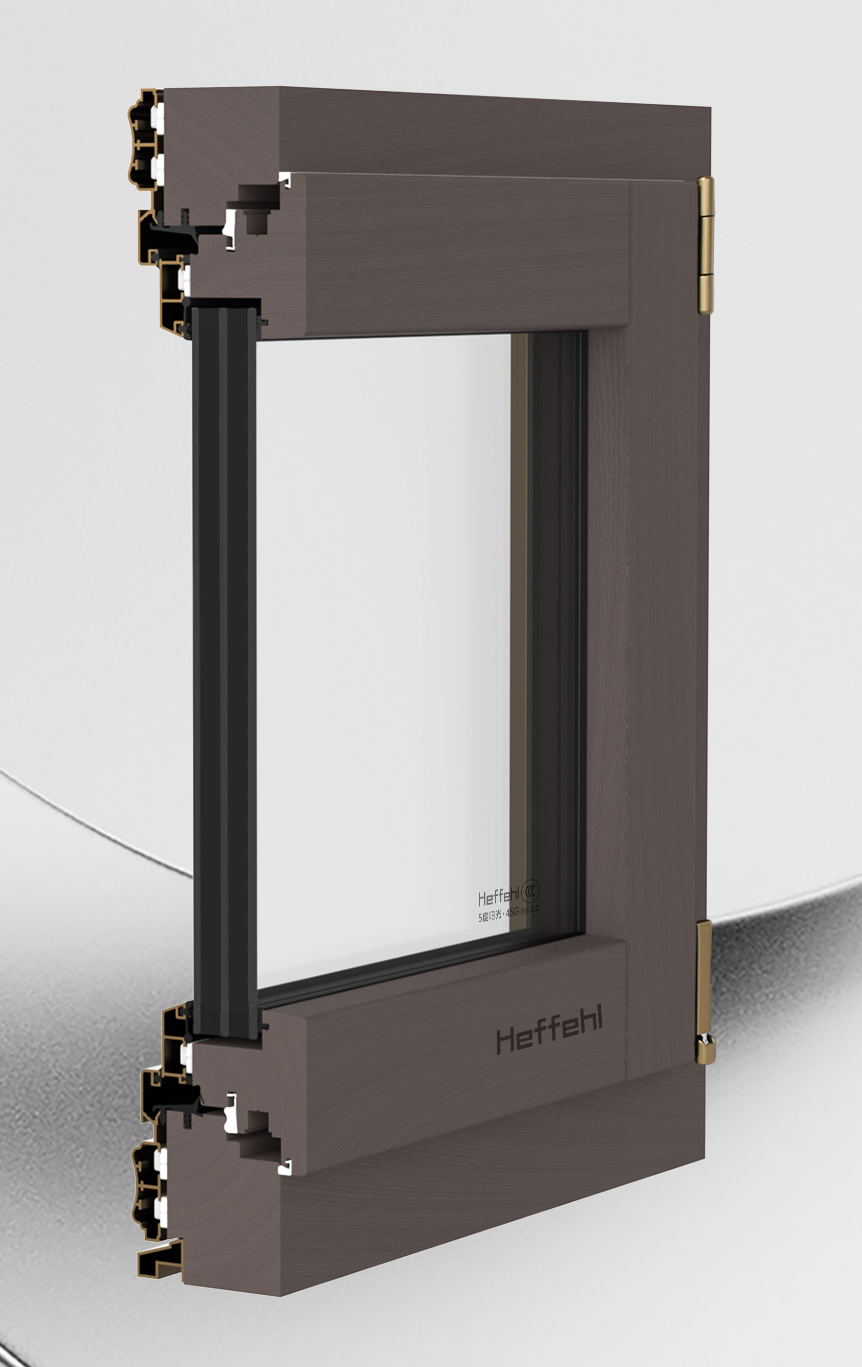

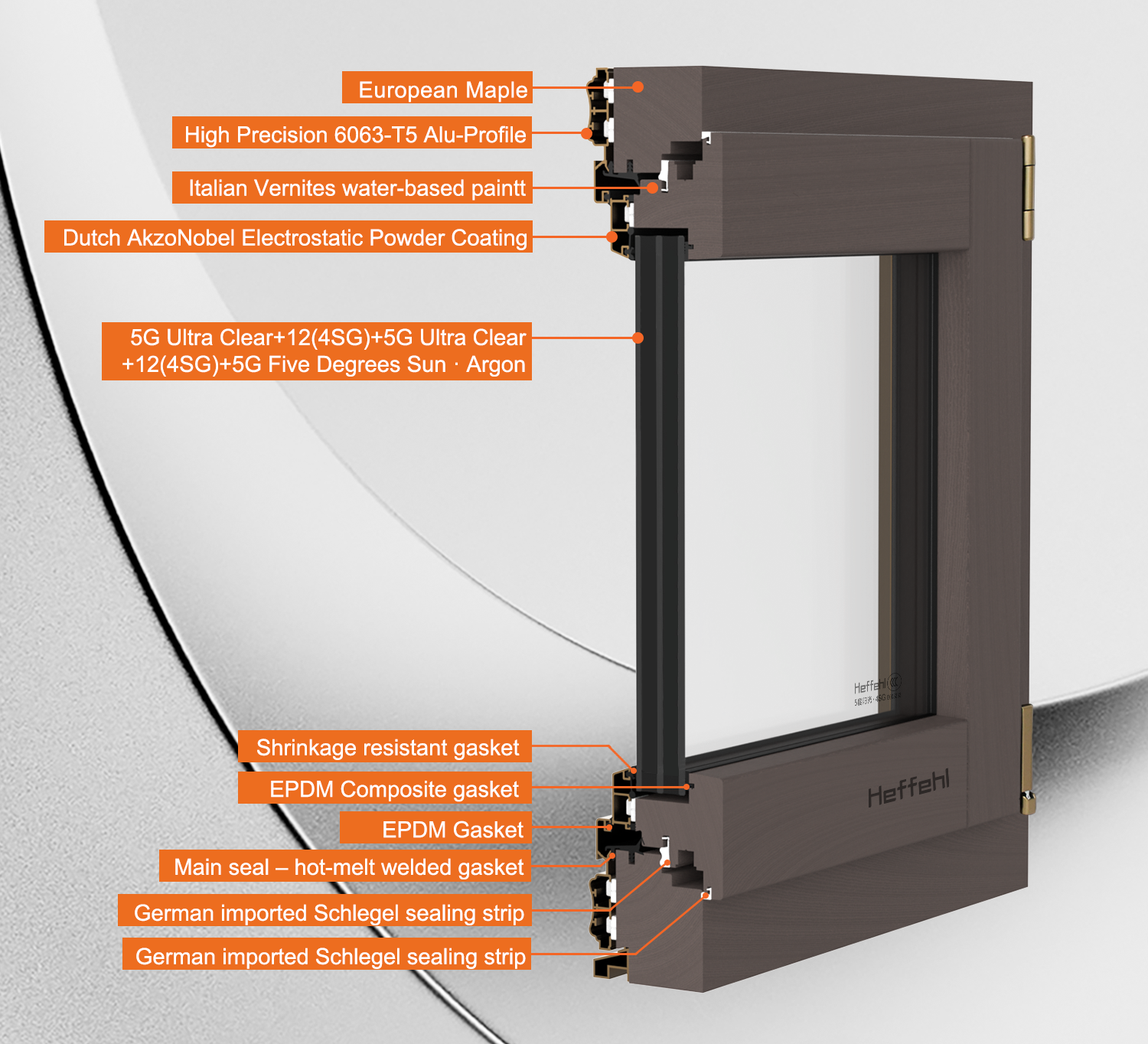

Product Configuration
– Overall window thickness 90mm
Wood
– Timber: European Maple
– Italian Vernites water-based paint
Aluminum
– Super High-Precision 6063-T5 Aluminum Profile
– Aluminum wall thickness 1.5mm
– Dutch AkzoNobel Electrostatic Powder Coating
Hardware
– German HOPPE handles
– Italian AGB visible hinge
– Standard lifting rollers
Glass
– 5G Ultra Clear+12(4SG)+5G Ultra Clear+12(4SG)+5G Five Degrees Sun · Argon（all Tempered）
* 4SG ： Ködispace 4SG from German company Kömmerling
* Five Degrees Sun：It is a high-performance glass with a heat penetration rate of only 5.5% (for extreme application scenarios, a product with 0% heat penetration rate can be selected).
Gasket
– German imported Schlegel sealing strip (Q-Lon)
– Main seal – hot-melt welded gasket
– Shrinkage resistant gasket
Screen
– Optional window screen, fixed externally mounted screen, fiberglass mesh
